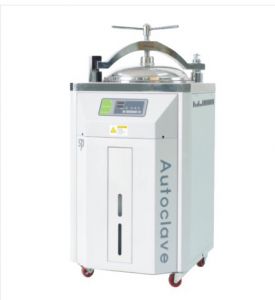

상 품 명 : 고압멸균기-Autoclave
제 조 사 : Hucom
견적자료 요청하기
구매사이트로 이동하기
브로셔 다운로드
상품설명



Features

● 멸균 후 자동으로 압력이 해제된다.

● 쉽게 온도,시간등을 설정하여 전 공정을 한번에 실행 할 수 있다.

● 콘트롤러는 조작이 쉽도록 전면부에 위치하였다.

● 온도 안전장치가 되어있어 설정온도 보다 초과 가동되지 않도록 하였다.

● 고압 안전핀을 설치하여 압력 초과시 위험성을 차단하였다.

●  PID 제어방식으로 정확한 온도제어가 가능하다.





Technical data

Heating-up time

   SJP-40AC

SJP-60AC

   SJP-80AC

SJP-100AC

at 121℃(Min)

        25

     30

        35

       40

Temperature accuracy

  SJP-40AC

  SJP-60AC

   SJP-80AC

SJP-100AC

at 121℃(±)

           1

        1

          1

       1

Selection model

Model

 SJP-60AC

 SJP-60AC

  SJP-80AC

SJP-100AC

Capacity

      40L

     60L

        80L

      100L

Chamber size (mm)

  Dia.300x620

 Dia.350x620

  Dia.400x620

 Dia.450x620

Dimension WxDxH (mm)

 500x500x1100

550x600x1100

 600x650x1100

 650x700x1100

Heater

     1.2kw

     1.5kw

  1.2Kwx2ea

  1.2Kwx2ea



Common Specification

Controller

                      Digital PID auto tuning

Temp.steril.temp

                         105℃ to 131℃

Sensor

                                PT100

Operating pressure

                            1.2kg/cm2

Display

                 Mircoprocessor Controller

Timer

                             99hr/59min

Air steam vent

                             Automatic

Basket

                                  2ea

Interiror material

                        Stainless steel 3t

External material

            steel plate with powder coating

Safety device

                  Hydraulic temperature limit                Over heat/pressure protector

Power

                   Single phase 220V/60Hz
