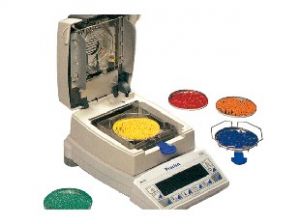

상 품 명 : XM-60
제 조 사 : Precisa-스위스
견적자료 요청하기
구매사이트로 이동하기
브로셔 다운로드
상품설명



빠른 가열장치 부호를 통한 작동

  • 사용자가 편리하게 사용하기 위한 부호를 통한 key표시.
  • 온도조정 1℃ 단위.
  • 밝고 선명한 VFD디스플레이.
  • 5가지 program저장
  • pc/printer 연결 가능(RS232C)
  • 손잡이가 본체 외벽에 달려 있어 뜨겁지 않게 시료를 취급할 수 있슴.
  • 온도 Calibration kit (option)






Model
XM 60
XM 66
Heat source:
Radiator type
Halogen/Infrared/Dark
Halogen/Infrared/Dark
Weighing system:
Weighing range (g)
124
310
Minimum sample weight (g)
0.2
0.2
Readability (g)
0.001
0.001
Drying:
Readability (%)
0.01
0.01
Reproducibility:
-in approx...g/...%
1/0.2
1/0.2
-in approx...g/...%
10/0.02
10/0.02
Result calculations:
100%...0%
Ⅴ
Ⅴ
0%.../100%
Ⅴ
Ⅴ
ATRO 100%...999%
Ⅴ
Ⅴ
ATRO 0%...999%
Ⅴ
Ⅴ
g/kg
Ⅴ
Ⅴ
Residual weight (g)
Ⅴ
Ⅴ
Weight loss (g)
Ⅴ
Ⅴ
Heating:
Temperature range/increment (℃)
30-230/1
30-230/1
Intervals
boost+1
3
Switch-off interval (min.)
-
-
Switch-off interval (%)
-
-
Switch-off criteria:
Auto stop (d/s)
freely definable
freely definable
Auto stop (%/s)
freely definable
Ⅴ
Timer stop (min.)
0.1-240
0.1-240
Minimum stop (%)
-
-
Adapt stop
Ⅴ
Ⅴ
Sequence control system:
Fully automatic
Ⅴ
Ⅴ
Semi-automatic
Ⅴ
Ⅴ
Standby temperature
30-100
30-100
Monitoring:
Inspection window
Ⅴ
Ⅴ
Buzzer
Ⅴ
Ⅴ
print-out:
GLP
Ⅴ
Ⅴ
print-out interval
0.1-10.0
0.1-10.0
User texts
-
-
Freely definable formats
-
-
Sample numbering
Ⅴ
Ⅴ
Memory capacity:
Methods(with all settings)
20
3 Fix, 2 free
User texts
-
-
Operation:
Display
VFD, 20 characters, alphanumerical
VFD, 20 characters, alphanumerical
Keyboard
10 keys
10 keys
Menu-controlled
Ⅴ
Ⅴ
Sample feed
manual
manual
Password protection
Ⅴ
Ⅴ
Special features:
Weighing-in guidance
Ⅴ
Ⅴ
Statistics
Ⅴ
Ⅴ
Remote control(heating)
Ⅴ
Ⅴ
Ash residue
Ⅴ
Ⅴ
Calibration:
Balance
external
external
Temperature
100℃ and 160℃
100℃ and 160℃
Miscellaneous:
Clock for date and time
Ⅴ
Ⅴ
PC/printer interface
RS232 (RJ45)
RS232 (RJ45)
Digital I/O
optional
optional
Anti-theft protection
code and mechanical
code and mechanical
